Cut branch contacts LV electric line

Published 2022-11-03

Background

A vegetation management worker was removing a tree on behalf of a property owner. The work was being performed by a vegetation management worker who was climbing the tree with a rope and harness similar to that pictured below, example pictured.

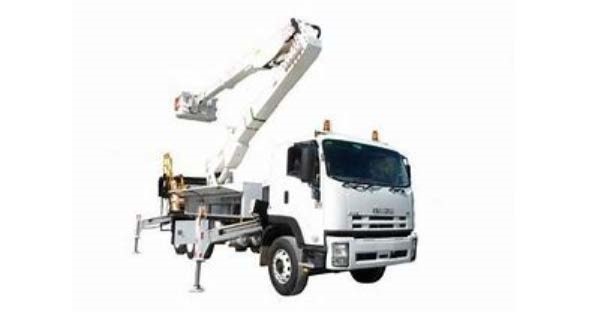

Photograph of a truck with a line worker's 'cherry picker' on the back.

The vegetation management worker (Climber) was pruning branches from the tree with the intention of removing the whole tree.

There was no safety observer or spotter on site. One of the pruned branches fell in an uncontrolled manner and made contact with an uninsulated low voltage (LV) conductor.

The LV conductor clashed with a second LV conductor causing the network protection to operate and interrupt the electricity supply. The incident created an unsafe electrical situation that had the potential to cause property damage, serious personal injury or in the worst circumstance an electrocution.

Fortunately, no one was injured. The incident was reported to the electricity distribution business and to Energy Safe Victoria (ESV).

Investigation Findings

ESV conducted an investigation of this incident and found:

  • the Climber failed to maintain the vegetation Minimum Clearance for vegetation to uninsulated LV conductors when pruning the tree
  • the Climber did not identify and outline control measures to ensure the work could be completed safely
  • the Climber did not have a spotter in place at the time of the incident, there was no evidence of consideration of No Go Zone requirements.

ESV’s view is that the combination of these failures means the Climber did not comply with the Electricity Safety (General) Regulations 2019, constituting a breach of Electricity Safety legislation; heavy penalties may be applied to such breaches.

Key Lessons

  • Ensure all site hazards are identified and actions to control the hazards are implemented
  • Continually monitor site and environmental conditions and adjust work sequences and practices to adapt to changing conditions
  • Always maintain appropriate distances when undertaking works in the vicinity of live electrical apparatus
  • Regularly reassess each worksite for hazards when completing electric line clearance work.

Important information

  • Failing to identify hazards at a work site will place workers at risk of serious personal injury or in the worst circumstance, electrocution
  • Ensure each individual work site is assessed for hazards and controls are implemented to manage risks; this should be an ongoing process throughout the work task to adapt to changing conditions
  • Working near live high and low voltage electric lines is equally dangerous. A vegetation management worker was electrocuted in February 2019 when they made contact with uninsulated low voltage electric lines. A vegetation management worker was electrocuted in February 2022 when contact was made with uninsulated high voltage electric lines.

Enforcement outcomes

Having completed its investigation of this incident it is ESV’s view that the minimum clearances from the electric line, as required by the Electricity Safety (General) Regulations 2019, were not maintained. Failing to maintain the minimum clearance is a breach of the regulations.

  • ESV’s view is the Climber failed to ensure the tree being pruned maintained the required clearance from the electric line, which is a breach of Electricity Safety (General) Regulations
  • ESV’s view is the Climber interfered with protected infrastructure, which is a breach of the Electricity Safety (General) Regulations.

ESV may choose to prosecute or take other enforcement action where it considers a breach of the Electricity Safety Act 1998 or Electricity Safety Regulations has occurred. Heavy penalties may be applied.
